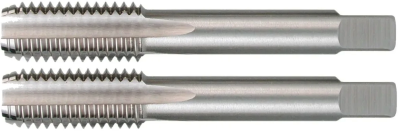

Метчик м/р комплектный ГОСТ 3266-81 Р6М5
Где купить
Описание
| 405 | d | Шаг резьбы | l | L |
| артикул | mm | mm | mm | mm |
| 40503050 | 3 | 0,5 | 11 | 48 |
| 40503035 | 3 | 0,35 | 11 | 48 |
| 40503560 | 3,5 | 0,6 | 11 | 50 |
| 40503535 | 3,5 | 0,35 | 11 | 50 |
| 40504070 | 4 | 0,7 | 13 | 53 |
| 40504050 | 4 | 0,5 | 13 | 53 |
| 40504575 | 4,5 | 0,75 | 13 | 53 |
| 40504550 | 4,5 | 0,5 | 13 | 53 |
| 40505080 | 5 | 0,8 | 16 | 58 |
| 40505050 | 5 | 0,5 | 16 | 58 |
| 40505550 | 5,5 | 0,5 | 16 | 66 |
| 405060100 | 6 | 1 | 19 | 66 |
| 40506075 | 6 | 0,75 | 19 | 66 |
| 40506050 | 6 | 0,5 | 19 | 66 |
| 405070100 | 7 | 1 | 19 | 66 |
| 40507075 | 7 | 0,75 | 19 | 66 |
| 40507050 | 7 | 0,5 | 19 | 66 |
| 405080125 | 8 | 1,25 | 22 | 72 |
| 405080100 | 8 | 1 | 22 | 72 |
| 40508075 | 8 | 0,75 | 22 | 66 |
| 40508050 | 8 | 0,5 | 22 | 66 |
| 405090125 | 9 | 1,25 | 22 | 72 |
| 405090100 | 9 | 1 | 22 | 69 |
| 40509075 | 9 | 0,75 | 22 | 66 |
| 40509050 | 9 | 0,5 | 22 | 66 |
| 4050100150 | 10 | 1,5 | 24 | 80 |
| 4050100125 | 10 | 1,25 | 24 | 80 |
| 4050100100 | 10 | 1 | 24 | 80 |
| 405010075 | 10 | 0,75 | 24 | 69 |
| 405010050 | 10 | 0,5 | 24 | 69 |
| 4050110150 | 11 | 1,5 | 24 | 85 |
| 4050110100 | 11 | 1 | 24 | 80 |
| 405011075 | 11 | 0,75 | 24 | 80 |
| 405011050 | 11 | 0,5 | 24 | 80 |
| 4050120175 | 12 | 1,75 | 29 | 89 |
| 4050120150 | 12 | 1,5 | 29 | 89 |
| 4050120125 | 12 | 1,25 | 29 | 89 |
| 4050120100 | 12 | 1 | 29 | 84 |
| 405012075 | 12 | 0,75 | 29 | 80 |
| 405012050 | 12 | 0,5 | 29 | 80 |
| 4050140200 | 14 | 2 | 30 | 95 |
| 4050140150 | 14 | 1,5 | 30 | 95 |
| 4050140125 | 14 | 1,25 | 30 | 95 |
| 4050140100 | 14 | 1 | 30 | 84 |
| 405014075 | 14 | 0,75 | 30 | 84 |
| 405014050 | 14 | 0,5 | 30 | 80 |
| 4050150150 | 15 | 1,5 | 30 | 95 |
| 4050150100 | 15 | 1 | 30 | 84 |
| 4050160200 | 16 | 2 | 32 | 102 |
| 4050160150 | 16 | 1,5 | 32 | 102 |
| 4050160100 | 16 | 1 | 32 | 90 |
| 405016075 | 16 | 0,75 | 32 | 90 |
| 405016050 | 16 | 0,5 | 32 | 80 |
| 4050170150 | 17 | 1,5 | 34 | 102 |
| 4050170100 | 17 | 1 | 34 | 90 |
| 4050180250 | 18 | 2,5 | 34 | 112 |
| 4050180200 | 18 | 2 | 34 | 112 |
| 4050180150 | 18 | 1,5 | 34 | 112 |
| 4050180100 | 18 | 1 | 34 | 95 |
| 405018075 | 18 | 0,75 | 34 | 95 |
| 405018050 | 18 | 0,5 | 34 | 80 |
| 4050200250 | 20 | 2,5 | 34 | 112 |
| 4050200200 | 20 | 2 | 34 | 112 |
| 4050200150 | 20 | 1,5 | 34 | 112 |
| 4050200100 | 20 | 1 | 34 | 102 |
| 405020075 | 20 | 0,75 | 34 | 102 |
| 405020050 | 20 | 0,5 | 34 | 90 |
| 4050220250 | 22 | 2,5 | 34 | 118 |
| 4050220200 | 22 | 2 | 34 | 118 |
| 4050220150 | 22 | 1,5 | 34 | 118 |
| 4050220100 | 22 | 1 | 34 | 112 |
| 405022075 | 22 | 0,75 | 34 | 112 |
| 405022050 | 22 | 0,5 | 34 | 90 |
| 4050240300 | 24 | 3 | 38 | 130 |
| 4050240200 | 24 | 2 | 38 | 120 |
| 4050240150 | 24 | 1,5 | 38 | 120 |
| 4050240100 | 24 | 1 | 38 | 113 |
| 405024075 | 24 | 0,75 | 38 | 113 |
| 4050250200 | 25 | 2 | 38 | 120 |
| 4050250150 | 25 | 1,5 | 38 | 120 |
| 4050250100 | 25 | 1 | 38 | 113 |
| 4050260150 | 26 | 1,5 | 38 | 120 |
| 4050270300 | 27 | 3 | 38 | 135 |
| 4050270200 | 27 | 2 | 38 | 127 |
| 4050270150 | 27 | 1,5 | 38 | 127 |
| 4050270100 | 27 | 1 | 38 | 120 |
| 405027075 | 27 | 0,75 | 38 | 120 |
| 4050280200 | 28 | 2 | 38 | 127 |
| 4050280150 | 28 | 1,5 | 38 | 127 |
| 4050280100 | 28 | 1 | 38 | 120 |
| 4050300350 | 30 | 3,5 | 45 | 138 |
| 4050300300 | 30 | 3 | 45 | 138 |
| 4050300200 | 30 | 2 | 45 | 127 |
| 4050300150 | 30 | 1,5 | 45 | 120 |
| 4050300100 | 30 | 1 | 45 | 120 |
| 405030075 | 30 | 0,75 | 45 | 120 |
| 4050320200 | 32 | 2 | 45 | 127 |
| 4050320150 | 32 | 1,5 | 45 | 137 |
| 4050330350 | 33 | 3,5 | 50 | 151 |
| 4050330300 | 33 | 3 | 50 | 151 |
| 4050330200 | 33 | 2 | 50 | 137 |
| 4050330150 | 33 | 1,5 | 50 | 137 |
| 4050330100 | 33 | 1 | 50 | 130 |
| 405033075 | 33 | 0,75 | 50 | 130 |
| 4050350150 | 35 | 1,5 | 50 | 144 |
| 4050360400 | 36 | 4 | 56 | 162 |
| 4050360300 | 36 | 3 | 56 | 162 |
| 4050360200 | 36 | 2 | 56 | 144 |
| 4050360150 | 36 | 1,5 | 56 | 144 |
| 4050360100 | 36 | 1 | 56 | 130 |
| 4050380150 | 38 | 1,5 | 56 | 151 |
| 4050390400 | 39 | 4 | 60 | 170 |
| 4050390300 | 39 | 3 | 60 | 170 |
| 4050390200 | 39 | 2 | 60 | 149 |
| 4050390150 | 39 | 1,5 | 60 | 149 |
| 4050390100 | 39 | 1 | 60 | 144 |
| 4050400300 | 40 | 3 | 60 | 170 |
| 4050400200 | 40 | 2 | 60 | 149 |
| 4050400150 | 40 | 1,5 | 60 | 149 |
| 4050420450 | 42 | 4,5 | 60 | 170 |
| 4050420400 | 42 | 4 | 60 | 170 |
| 4050420300 | 42 | 3 | 60 | 170 |
| 4050420200 | 42 | 2 | 60 | 149 |
| 4050420150 | 42 | 1,5 | 60 | 149 |
| 4050420100 | 42 | 1 | 60 | 144 |
| 4050450450 | 45 | 4,5 | 65 | 187 |
| 4050450400 | 45 | 4 | 65 | 187 |
| 4050450300 | 45 | 3 | 65 | 187 |
| 4050450200 | 45 | 2 | 65 | 165 |
| 4050450150 | 45 | 1,5 | 65 | 165 |
| 4050450100 | 45 | 1 | 65 | 151 |
| 4050480500 | 48 | 5 | 70 | 187 |
| 4050480400 | 48 | 4 | 70 | 187 |
| 4050480300 | 48 | 3 | 70 | 187 |
| 4050480200 | 48 | 2 | 70 | 165 |
| 4050480150 | 48 | 1,5 | 70 | 165 |
| 4050480100 | 48 | 1 | 70 | 151 |
| 4050500300 | 50 | 3 | 70 | 187 |
| 4050500200 | 50 | 2 | 70 | 165 |
| 4050500150 | 50 | 1,5 | 70 | 165 |
| 4050520500 | 52 | 5 | 70 | 200 |
| 4050520400 | 52 | 4 | 70 | 200 |
| 4050520300 | 52 | 3 | 70 | 200 |
| 4050520200 | 52 | 2 | 70 | 175 |
| 4050520150 | 52 | 1,5 | 70 | 175 |
| 4050520100 | 52 | 1 | 70 | 165 |
